Custom Tom Drum Plates

Custom tom drum masking plate sets, 3D printed to your measurements to cover the holes left by an old mount. Pick a shape, enter your four sizes above, and choose how many toms you need sets for.

What you're ordering: flat plates printed to the shape, size and hole spacing you choose above, the same style as our premade plates. Engraving, logos, text, other shapes and other extra work are not offered, and order notes asking for them can't be fulfilled.

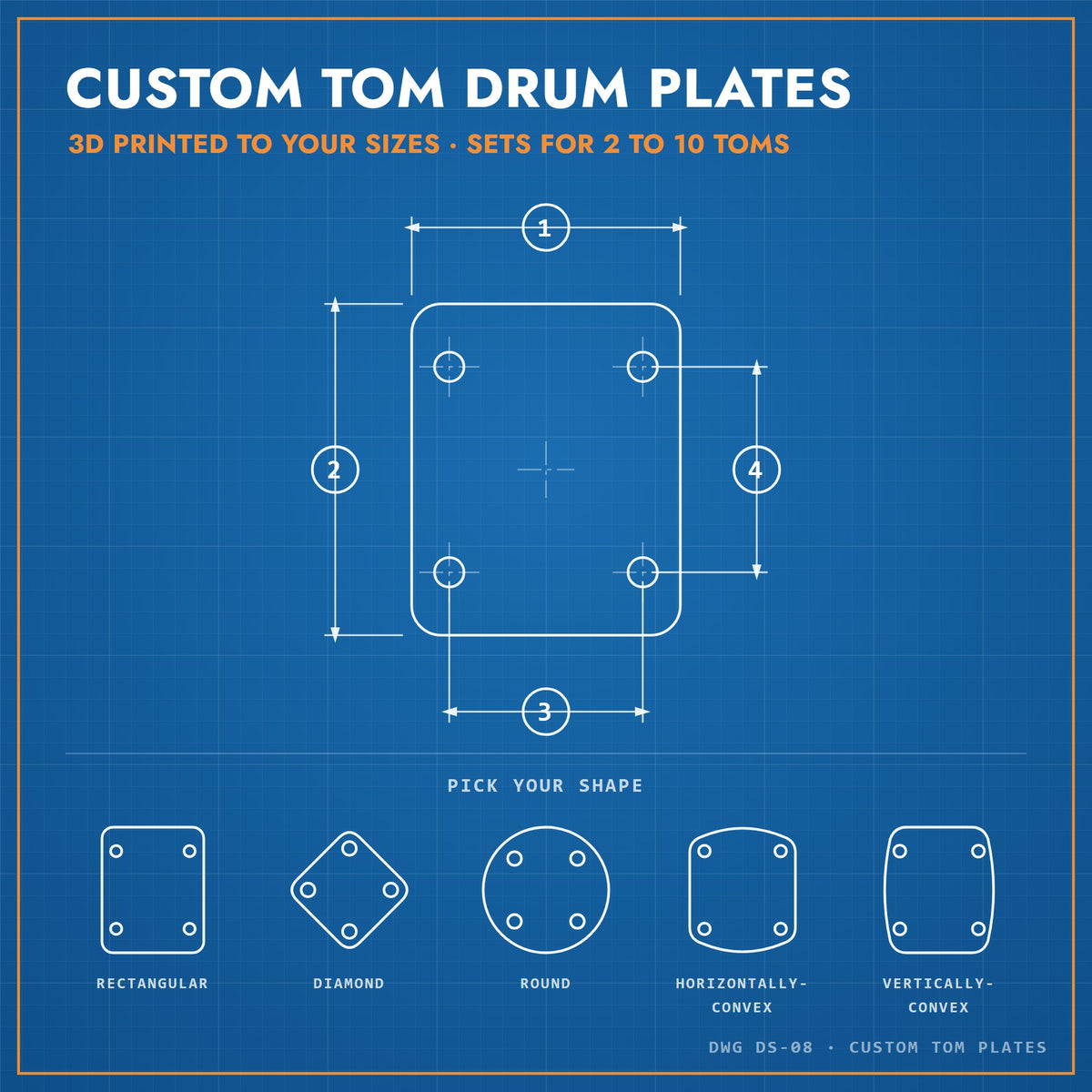

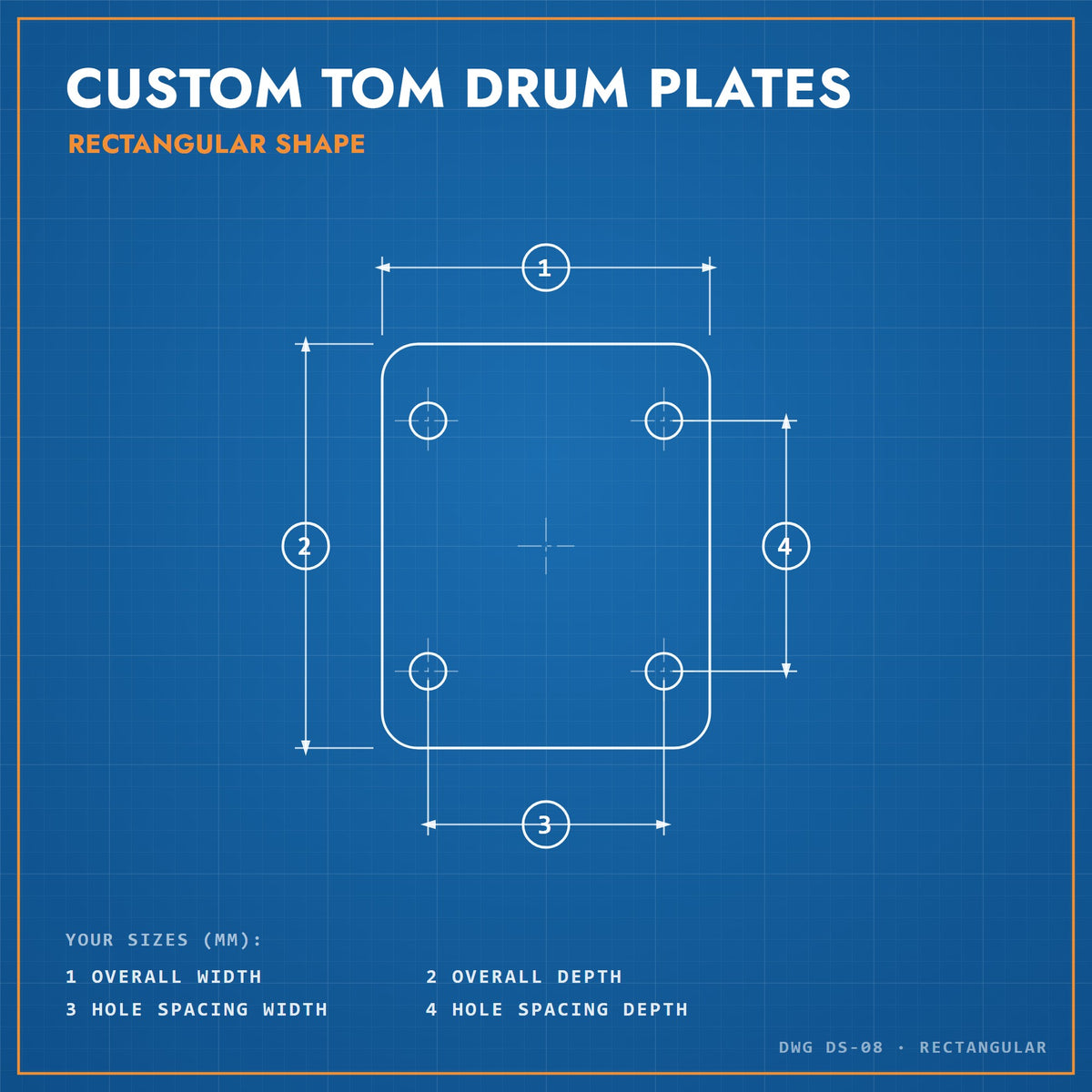

Shapes: Rectangular, Diamond, Round, Horizontally-Convex (top and bottom edges curve out) or Vertically-Convex (left and right edges curve out). The pictures show each one.

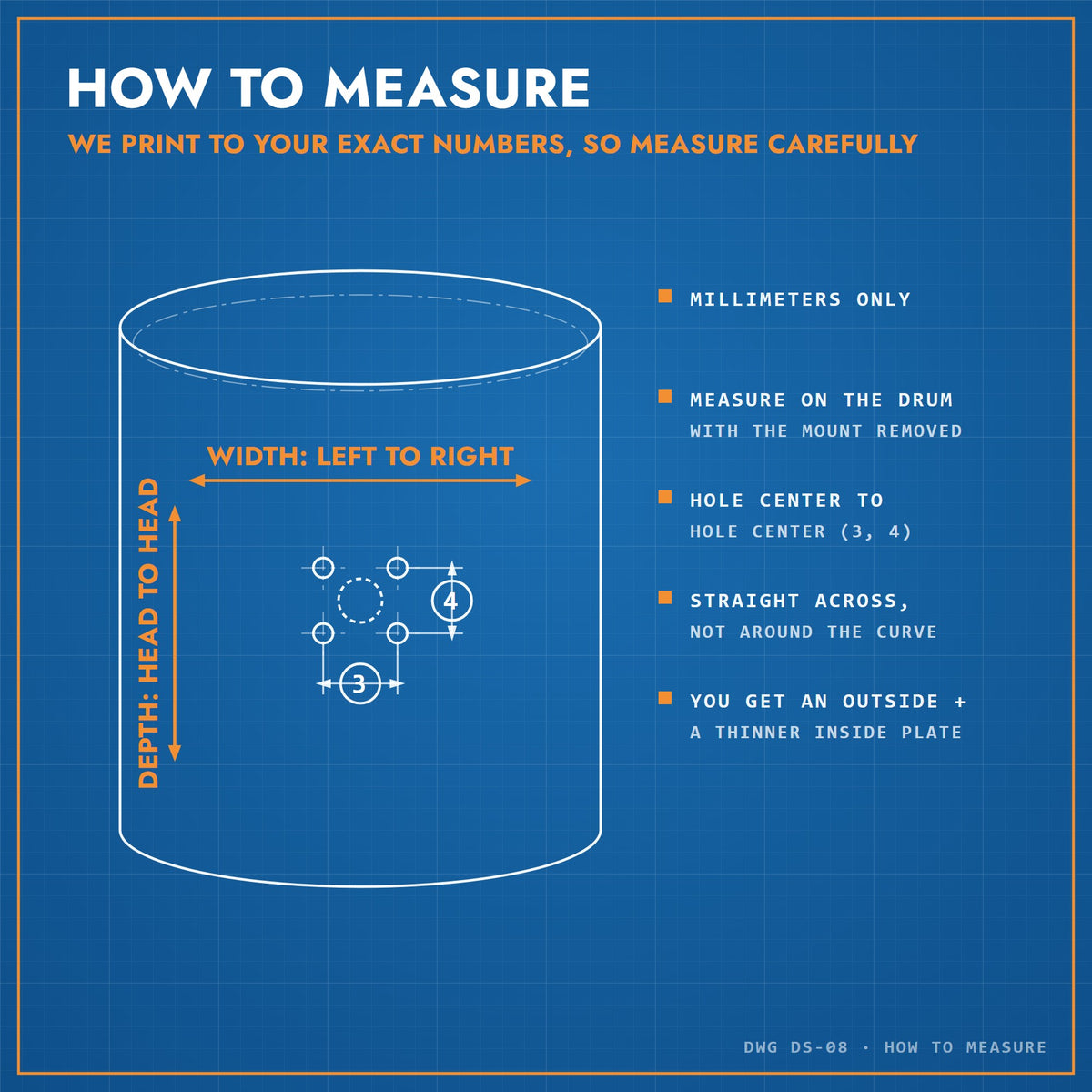

MUST READ before ordering!

1. Use millimeters. All measurements must be in millimeters.
2. Overall size (fields 1 and 2): the overall width (left to right) and depth (head to head) of the plates. They should cover the same area as the previous mount, or a little more. For round plates, enter the same number in both fields.
3. Hole spacing (fields 3 and 4): VERY IMPORTANT. Measure on the tom itself, WITHOUT the mount installed; measuring from the mount often gives a poorly fitting plate. Measure from the center of each drilled hole on the side of the tom, straight across (not around the curve): left to right in field 3, head to head in field 4. On a diamond plate that is the left-to-right holes and the head-to-head holes.
4. Convex shapes: where the curved edges start is worked out from your hole spacing.

• Includes: each set is 2 plates (one for the outside of the tom and a thinner one for the inside) plus assembly hardware. All sets in an order are made to the same sizes.
• Quantity: number of sets, one per tom, from 2 to 10.
• Color: choose from the Color drop-down above: Black, White, Silver, Blue, Red, Green or Yellow (same price).

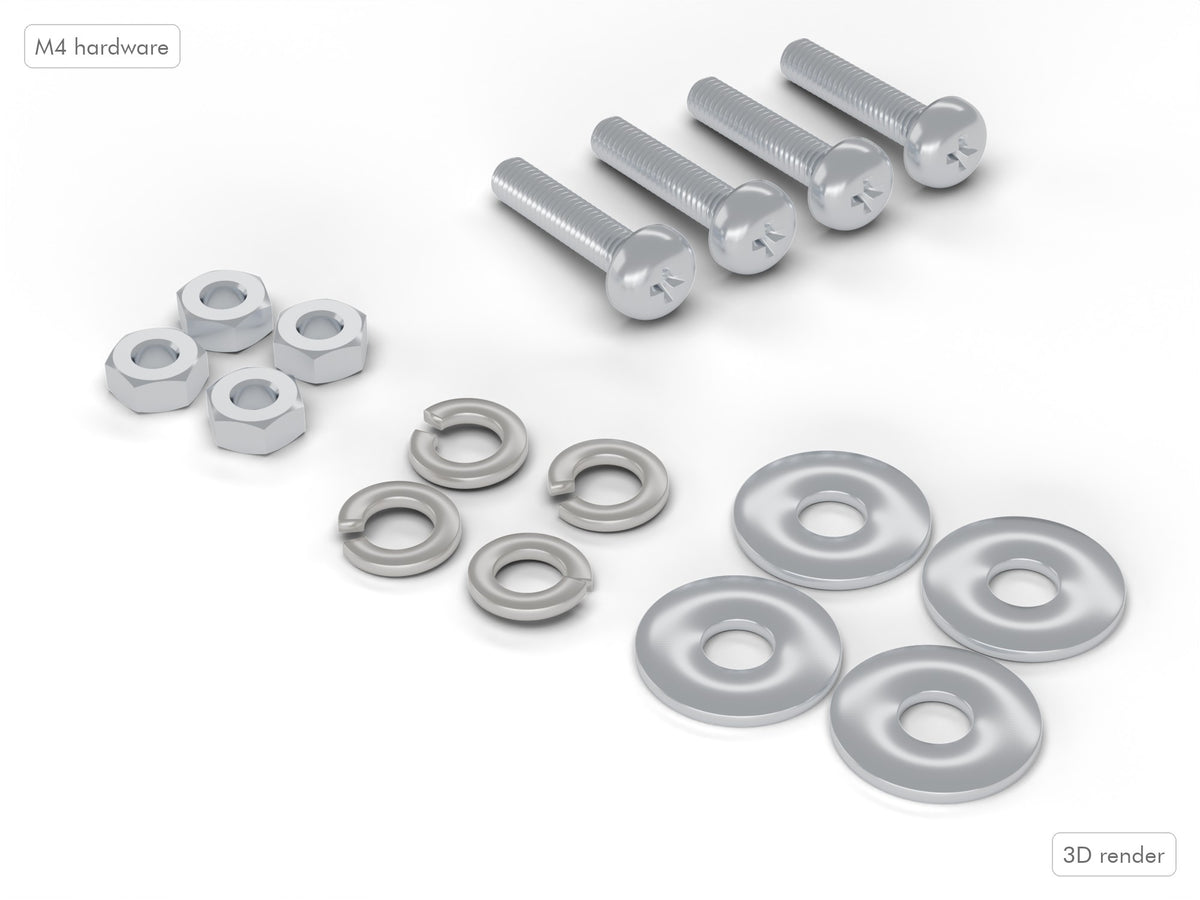

• Holes: 6.5mm diameter; M4 hardware included.

No returns on custom plates. They are made to your specifications, so please measure carefully and accurately.

Like all 3D-printed parts, minor surface texture and small variations in finish are normal.
