Custom Bass Drum Plates

Custom bass drum masking plates, 3D printed to your measurements to cover the holes left by an old tom mount. Pick a shape, enter your four sizes above, and we print a matching pair.

What you're ordering: flat plates printed to the shape, size and hole spacing you choose above, the same style as our premade plates. Engraving, logos, text, other shapes and other extra work are not offered, and order notes asking for them can't be fulfilled.

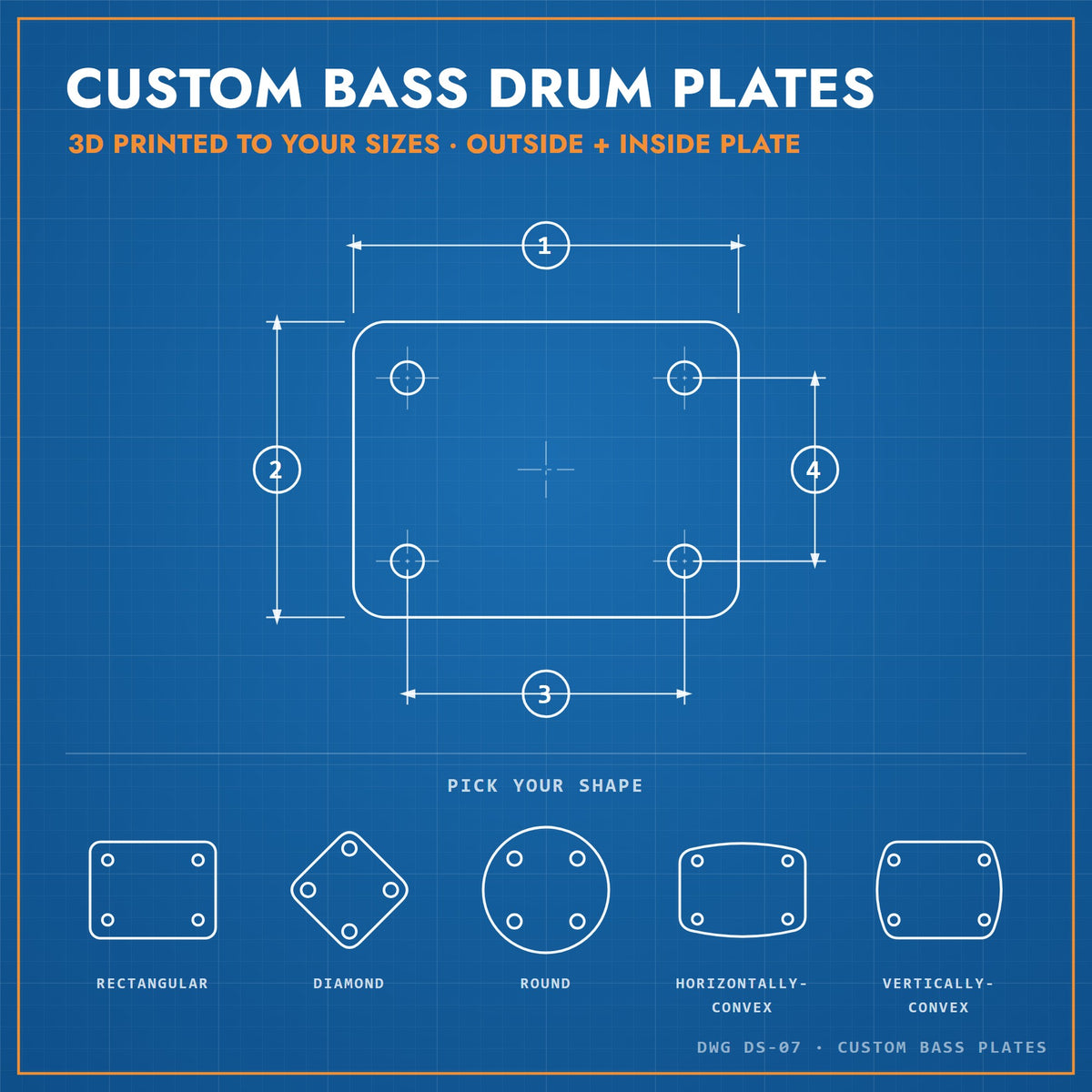

Shapes: Rectangular, Diamond, Round, Horizontally-Convex (top and bottom edges curve out) or Vertically-Convex (left and right edges curve out). The pictures show each one.

MUST READ before ordering!

1. Use millimeters. All measurements must be in millimeters.

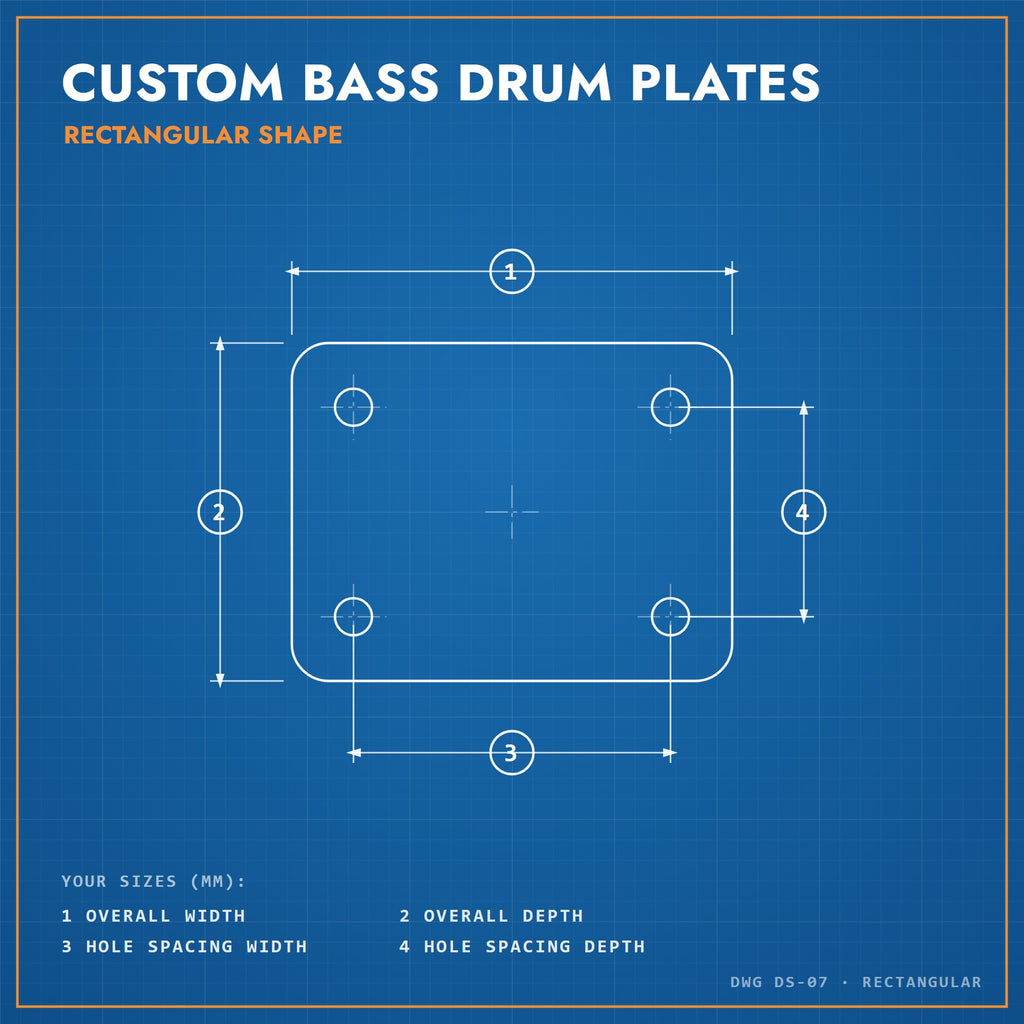

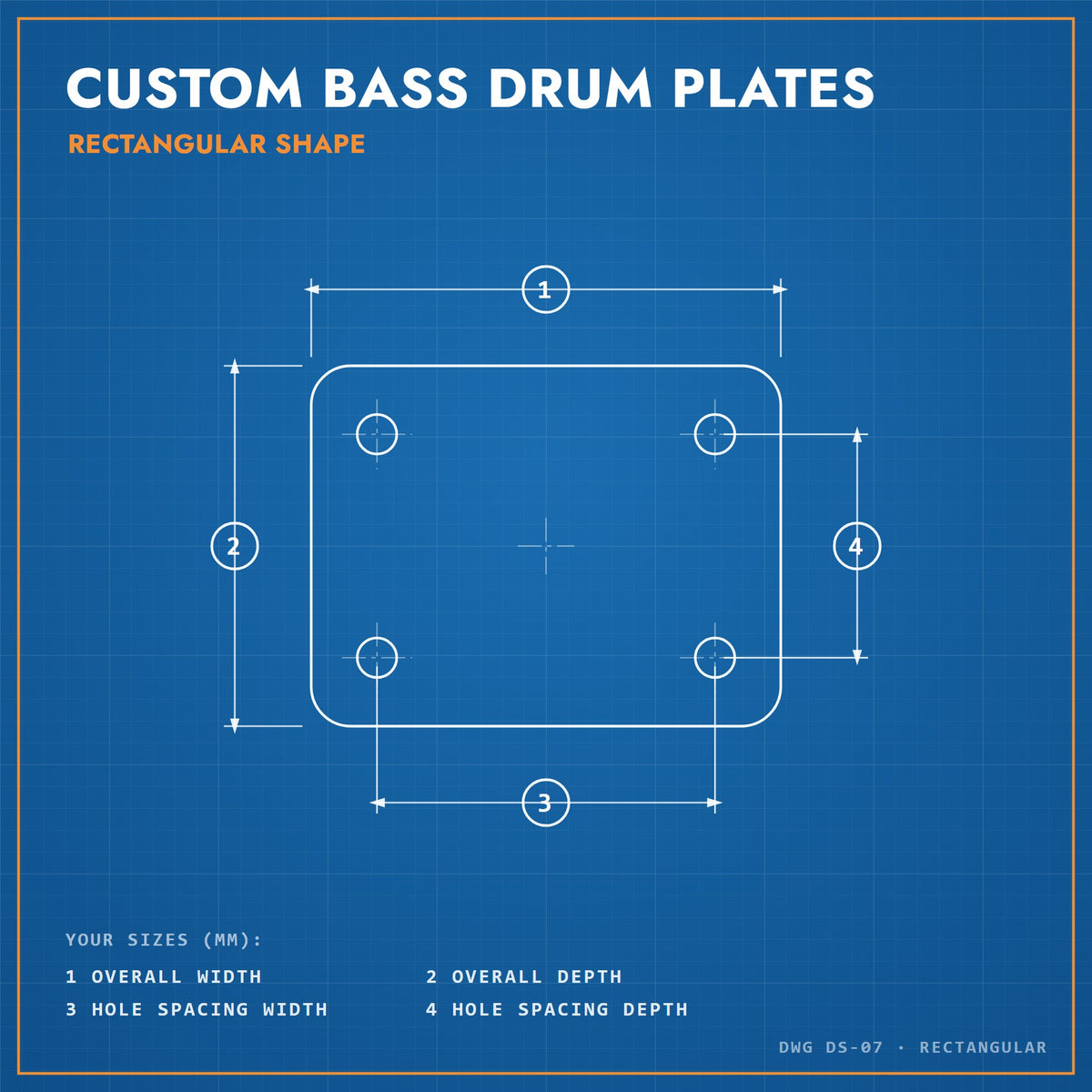

2. Overall size (fields 1 and 2): the overall width (left to right) and depth (front to back) of the plate. It should cover the same area as the previous mount, or a little more. For a round plate, enter the same number in both fields.

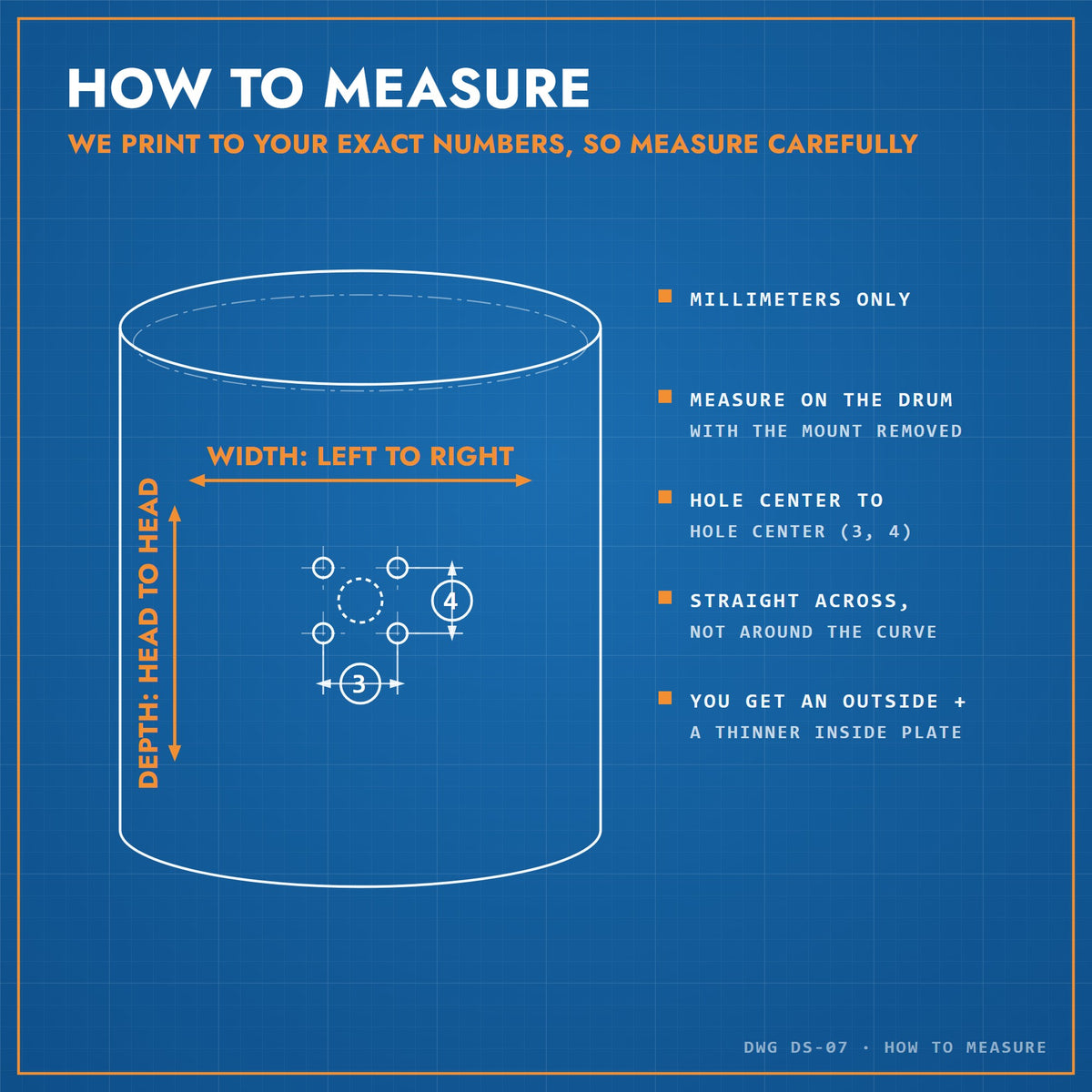

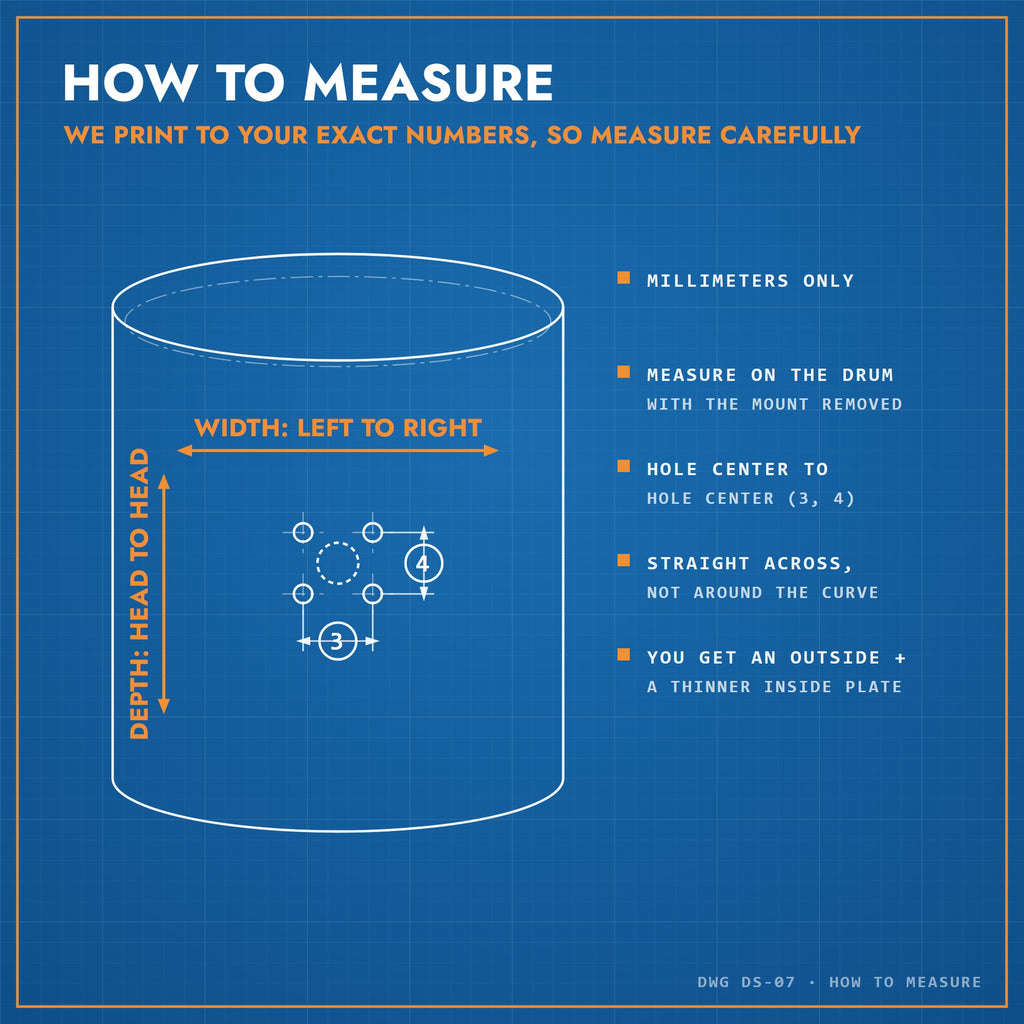

3. Hole spacing (fields 3 and 4): VERY IMPORTANT. Measure on the bass drum itself, WITHOUT the tom mount installed; measuring from the mount often gives a poorly fitting plate. Measure from the center of each drilled hole on top of the drum, straight across (not around the curve): left to right in field 3, front to back in field 4. On a diamond plate that is the left-to-right holes and the front-to-back holes.
4. Convex shapes: where the curved edges start is worked out from your hole spacing.

• Includes: for each bass drum, 2 plates (one for the top of the drum and a thinner one for the inside) plus assembly hardware.
• Quantity: how many bass drums you need plates for.
• Color: choose from the Color drop-down above: Black, White, Silver, Blue, Red, Green or Yellow (same price).

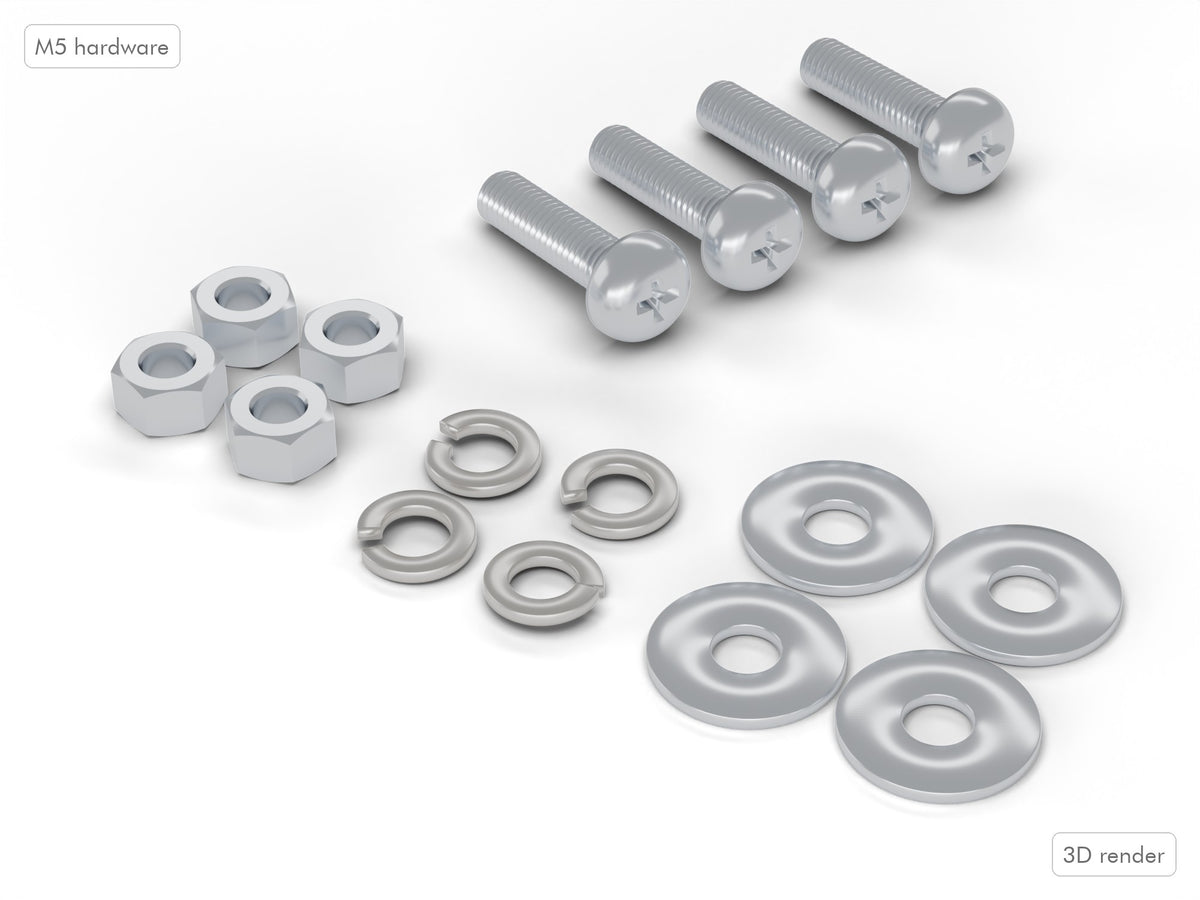

• Holes: 6.5mm diameter, for standard M5 hardware.

No returns on custom plates. They are made to your specifications, so please measure carefully and accurately.

Like all 3D-printed parts, minor surface texture and small variations in finish are normal.
